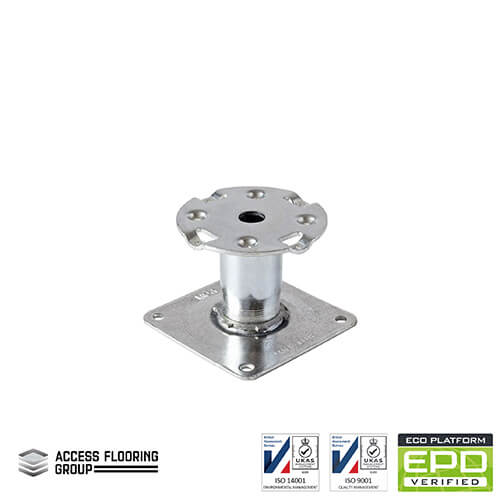

The X4 PSA Adjustable Pedestal (110–185mm) is a heavy-grade steel pedestal designed for demanding raised access flooring systems where increased void depth is required. As part of the manufacturer’s ‘X’ Range, it is engineered to meet the requirements of the PSA MOB PF2 PS/SPU: March 1992 specification and has been tested in conjunction with a variety of access floor panels. Built with robust steel components, precision threads and a zinc plated finish, the X4 pedestal delivers long-term stability for commercial offices, data centres, plant rooms and technical floor environments.
Adjustable Height: Covers finished floor heights from 110mm to 185mm.
PSA Specification Pedestal: Designed to meet PSA MOB PF2 PS/SPU: March 1992 (heavy grade).
Heavy-Duty Steel Build: Robust base, head and threaded components for strength and rigidity.
Proven Testing: Tested with multiple panel types and passed key PSA test criteria.
Fast Installation: Thread tolerances allow quick adjustment without compromising stability.
Order the X4 PSA Adjustable Pedestal today for a heavy-grade, PSA-tested support solution built for deeper void applications and long-term stability.
Product FAQs
It supports finished floor heights from 110mm to 185mm.
The ‘X’ Range is designed to meet the demanding requirements of the PSA MOB PF2 PS/SPU: March 1992 specification (heavy grade).
It has passed PSA test criteria including T5 (free play), T8 (deflection), T15 (horizontal load strength), T16a (vertical load 18kN) and T16b (quadrant load 13.5kN).
Yes. The ‘X’ Range is manufactured to special order in standard heights from 75mm up to 1450mm with overlap between ranges, and special height ranges can also be supplied on request.
