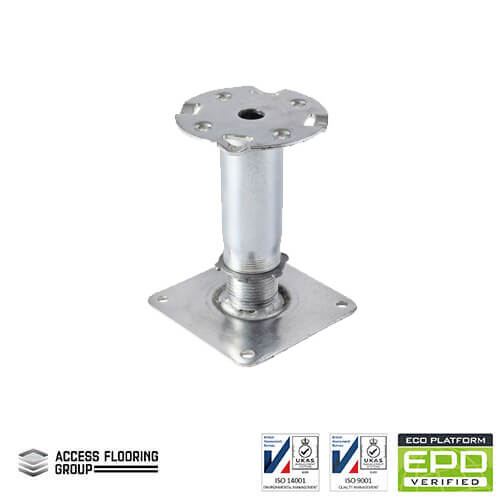

The X5 PSA Adjustable Pedestal (150–225mm) is a heavy-grade steel pedestal engineered for raised access flooring systems requiring increased void depth and high structural performance. Part of the manufacturer’s ‘X’ Range, this pedestal is designed to meet the demanding requirements of the PSA MOB PF2 PS/SPU: March 1992 specification and has been tested in conjunction with a wide range of access floor panels. Its robust construction, precision-threaded adjustment system, and zinc plated finish make it ideal for commercial offices, data centres, plant rooms, and technical floor installations.
Adjustable Height: Covers finished floor heights from 150mm to 225mm.
PSA Specification Pedestal: Designed to meet PSA MOB PF2 PS/SPU: March 1992 (heavy grade).
Heavy-Duty Steel Construction: Engineered for strength, rigidity, and long-term reliability.
Proven PSA Testing: Tested with multiple panel types and passed key PSA performance criteria.
Installer Friendly: Precision tolerances allow fast height adjustment without compromising stability.
Order the X5 PSA Adjustable Pedestal today for a heavy-grade, PSA-tested solution designed for deeper void raised access flooring installations.
Product FAQs
It supports finished floor heights from 150mm to 225mm.
The ‘X’ Range is designed to meet the demanding requirements of the PSA MOB PF2 PS/SPU: March 1992 specification (heavy grade).
It has passed PSA test criteria including T5 (free play), T8 (deflection), T15 (horizontal load strength), T16a (vertical load 18kN) and T16b (quadrant load 13.5kN).
Yes. The ‘X’ Range is manufactured to special order in standard heights from 75mm up to 1450mm with overlap between ranges, and special height ranges can also be supplied on request.
